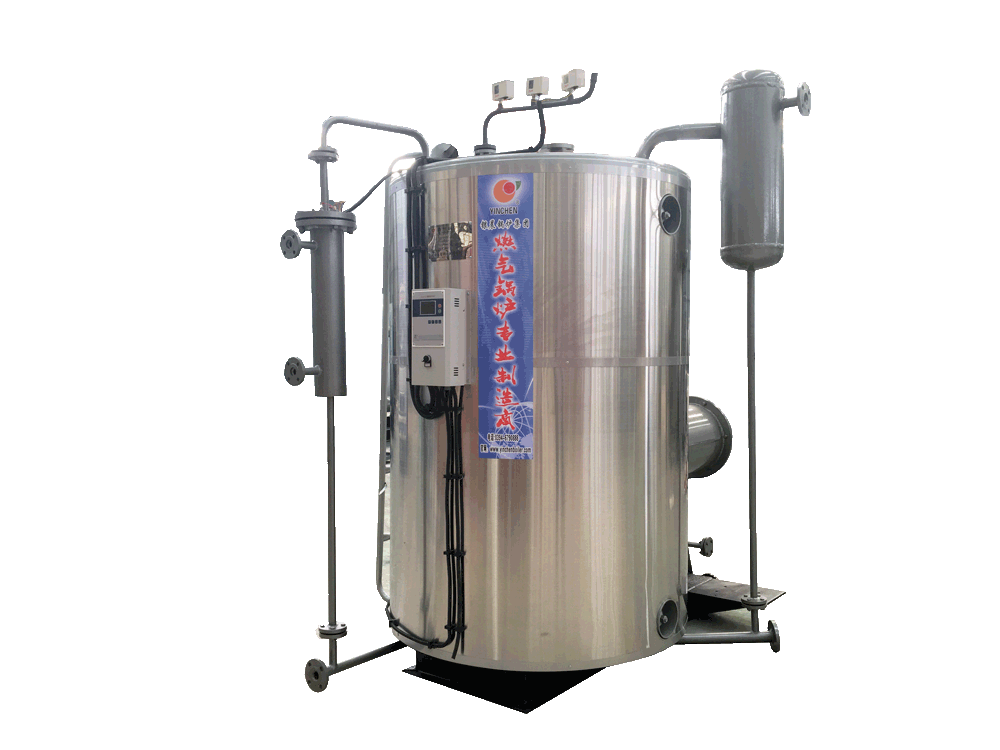

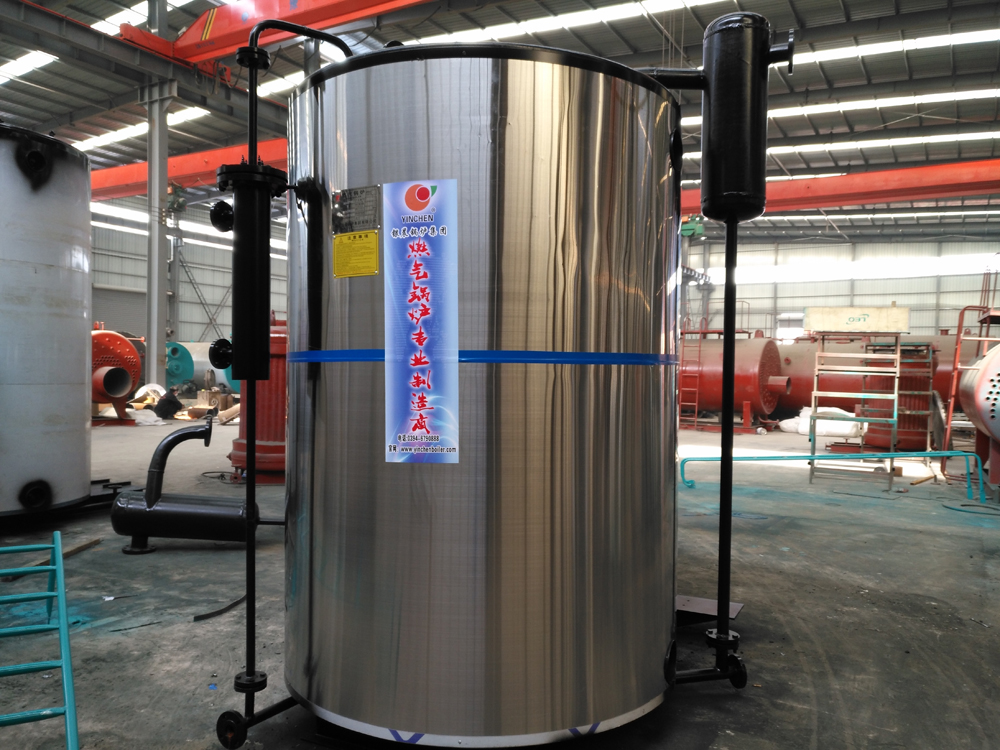

Automatic gas fired high efficiency once-through steam boiler is a new type of high-tech energy saving product. It can produce steam in cold water condition within 3-5 minutes. While the traditional oil/gas fired boiler generate steam will take 30-40 minutes. It means that this product warm-up time is particularly short, every start will save 30 minutes of fuel consumption than traditional oil/gas fired boiler. This product is extremely suitable for intermittent use heat conditions and rapid use heat, and can save energy 15-20% than traditional boiler.
-
Adopts vertical arrangement, boiler structure is compact, occupy area is small, and the boiler room requirements are simple.
-
Pressure boost-up quickly, boiler start time is short, generate steam within 3-5 minutes in normal temperature status. Rapid steam production, warm-up time is short, can effectively reduce operating costs. The traditional structure WNS series oil/gas fired steam boiler takes about 30-40 minutes from normal temperature to produce steam. start once a day, and can save 30 minutes fuel consumption every start. For a long time, this boiler is your best choice.
-
Easy to installation: Complete boiler assembly, commissioning, fully equipped in the factory. After the boiler installed on site, just need connect water, electricity, oil, gas and blowdown pipeline can be put into operation.
-
Whole tube plate structure, oiler explosion accident will not happen, excellent safety performance. Especially for hospitals, schools, residence community etc crowded areas, not security risks.
-
Boiler body is welded by the upper-lower header, straight pipes and flat steel. Filled in the refractory material between the pipe both ends and tube plate welding point. This structure effectively solve the furnace seal, heat affected area overlap, stress concentration and other problems.
-
With special W-type smoke gas process, flue gas outside the water pipe high-speed flow and cross-flow scrubbing. Convection heat transfer is very strong, high heat transfer coefficient.
-
Supply water to lower headers, and then distributed to the water pipe, boiler water circulation is fast, water volume relatively small, boiler start and stop quickly. At the same time, designed unique boiler inside and boiler outside two steam-water separation device, to ensure a better steam quality. Coupled with sophisticated water level control alarm, pressure control system, to make the boiler operation safe and reliable.
-
Adopts light and efficient absorb noise insulation materials: thermal insulation use 50mm aluminum silicate board, light weight, good insulation effect, hot loss is small, appearance use the brushed stainless steel plate, beautiful and generous.
-
Electric control system adopts intelligent control, reserved the PLC control port, high automaticity. The control system with automatic control combustion, water pump automatic control ,draught fan automatic control, gas fired solenoid valve automatic control,and meanwhile low water level fault, high pressure failure, flame breakdown, pressure fault, air door open fault, air door turn down fault, air door close fault etc security protection. Computer(PLC) also automatically record a variety of date parameter and alarm parameters and other data, through the touch screen for recording, statics, management.
-
Adopts the whole Chinese LCD controller, dynamic graphical working condition display. automatic control system, simple operation, no need special duty .Full rage of temperature display, more convenient to manage the operation of boiler and the system.
FAQ
Q1: How do you get the price?
First,You can tell us the boiler capacity, the fuel or pressure. Or tell us your configuration requirement.
Q2: Why do you choose us?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test ensure the standard working pressure and safety;
(5).Third-party inspection report:By Henan Boiler Inspection Institute;
(6).Passed ISO:9001 and SGS certificate.
Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your place in 72 hours. The experts will responsible for guiding installation and commissioning.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,you can use 20-25 years.
